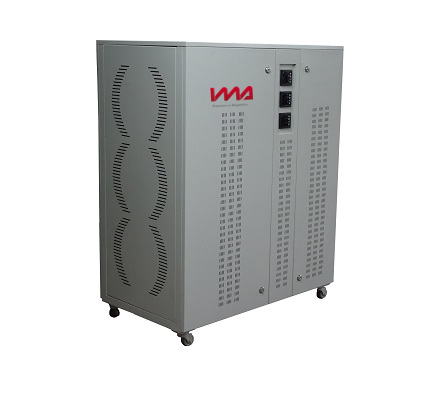

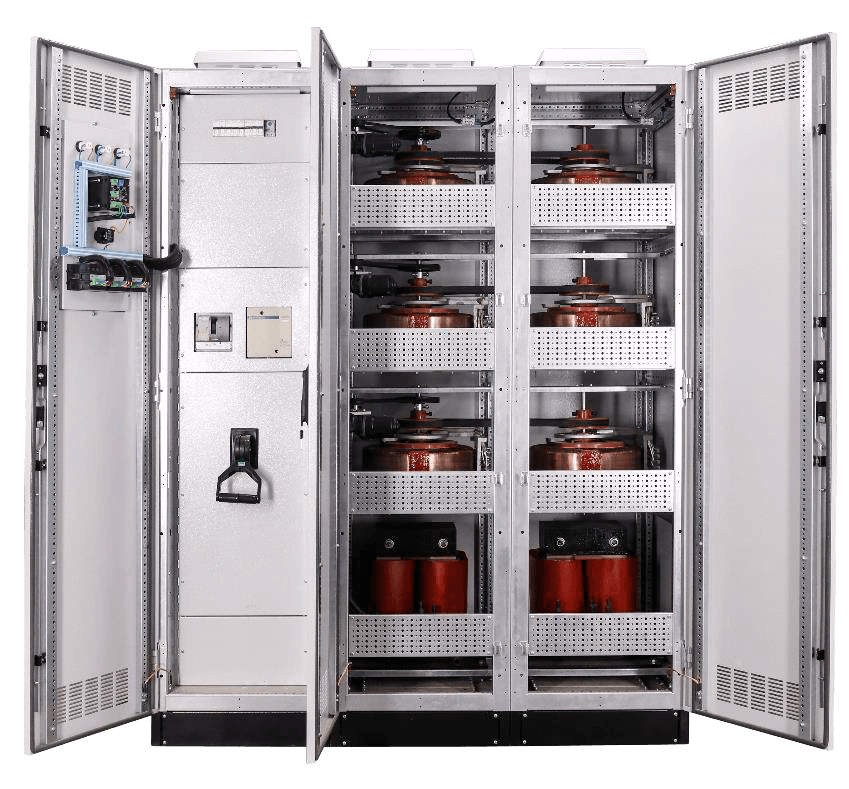

Three-phase Servo Motor Stabilizers

Voltage stabilizers are completely electronic and contain no moving parts.

Out of stock

SKU: estabilizador-servomotor-trifasico Category:

Description

Technical specifications:

  • The IMA SRV33 series are three-phase voltage stabilizers that regulate the mains voltage for ensure a stable network
  • The drive of non-linear loads
  • Three-phase input Three-phase output
  • Independent regulation per phase
  • Wide range of power and voltage
  • Fast regulation
  • High-reliability thanks to the microprocessor and intelligent controller
  • high efficiency
  • Load transfer to Bypass by manual switching
  • safe and economic use
    overload protection
  • Digital display of input and output status and measurements
  • 2 years warranty
  • 10-Year Replacement Parts Support

THREE PHASE 220-230 240-380-400-415-440 VAC IP20, IP21, IP54, Available versions

Technical characteristics:

SPECIFICATIONS SINGLE PHASE SRV
Kva Power610.51522.530456027100120150



FEEDING
Strain285-440 v
Maximum margin
Frequency47-65 Hz
ProtectionMagnetothermal
Intensity9.616.82436487296120144192240



UTILIZATION
Voltage400 V (optional 380 – 415v)
Overload200% 10 sec.
Correction time90v / sec.
Power factor0,8 (1 optional)
ProtectionMINIMUM AND MAXIMUM VOLTAGE / MAXIMUM CURRENT
Output current7.212.6182736547290108144180



SYSTEMSERVO MOTOR CONTROL BY MICRO PROCESSOR
COMMON CHARACTERISTICS
VentilationNatural with thermostat
VisualizerAR DIGITAL (input and output volts, intensity, frequency, power)
Ammonic distortionNULL
Efficiency>96%
BypassManual
Cabinet protectionIP-20 (optional IP-54)
Working temperature50ºC
Storage-10º + 60ºC
Relative humidity90% non-condensing
Maximum altitude<2.000m
Acoustic level<50dB
CertificationCE/TUV Austria Hellas (ISO 9001)



Dimensions (cm)117x40x64127x40x64140x88x60165x94x66
Height Width Depth
Weight (kg)85/95/105/125145/165260/280/310400/425
