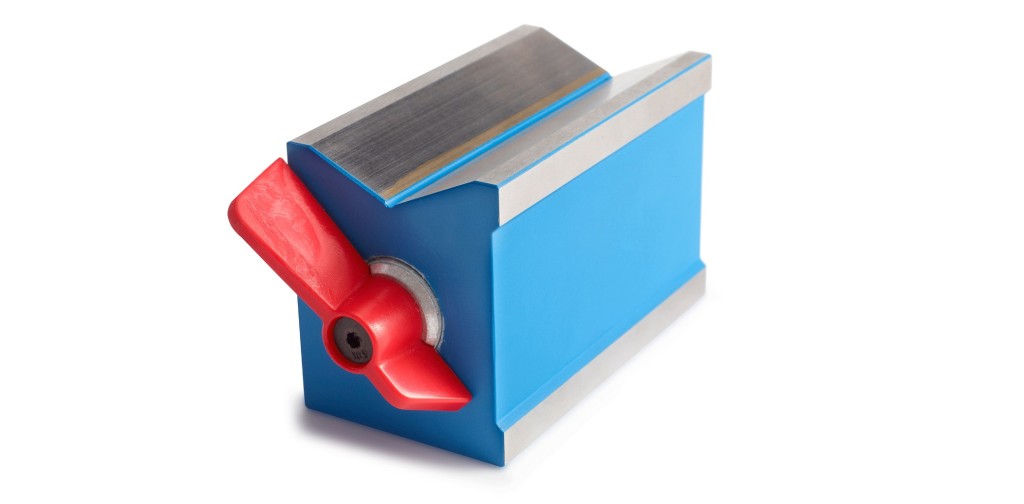

“V” Block without Mounting Hole

Description

These blocks have 3 magnetic sides.

Format:

Two of them have a 90º “V”. They are very useful for holding irregular and cylindrical objects, and it is magnetism is turned on and off by turning the handle 90º. They are totally impervious to cutting oils, so it is possible for the block to work submerged in them (for example, in electro-erosion machines).

The magnetic bases of the supports can be supplied without the rigging.

Maximum working temperature:

60ºC

For maximum working temperature contact our sales department.

Remarks:

In some cases it is convenient to use two holders at a time, in that case can be supplied in pairs (rectified at the same height).

Fields of application:

Support tools in workshops, factories …

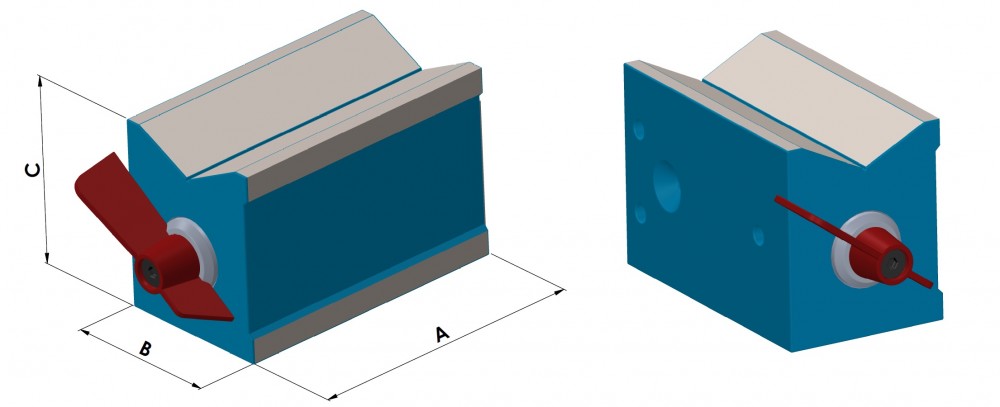

Standard sizes:
